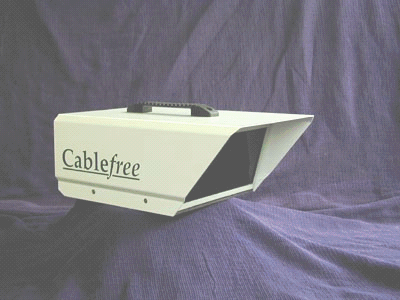

Cablefree Gigabit - Product Datasheet




Cablefree Gigabit Technical Data

Variants:
Range G200, G500, G1000
Interfaces Various - 622Mbps to 1500Mbps

Performance:
Range Systems for 200m, 500m & 1km
Data rates supported 622Mbps to 1500Mbps
Unfaded Bit Error Rate Better than 1x10-10 at 1500Mbps
Fade Margin >20dB to overcome fog, rain, snow or shimmer
Link Availability Between 99.7% and 99.999% depending on distance and location

Unit Specification:
Size depends on variant
Weight depends on variant
Unit Power Consumption 75W 24Vdc
External Power Supply 90 - 250V ac auto-ranging, 48V dc option
Operating Temperature -20 to 60ºC
Optical sub-systems:
Operating Wavelength 785nm
Filtering Infra-red filter removes interference from daylight
Beam divergence Factory-preset to 0.5º or 0.25º
Optical classification Eye-safety Class 1M to IEC825 -1

Alignment aids:
Alignment sight Mechanical ‘gun-sight’ for general alignment
RSSI meter 10-step signal strength meter and audible tone
FM audio 2-way ‘voice link’ for speech and RSSI tones

Data Formats:
High capacity single channel 622Mbps, Gigabit Ethernet and Gigabit Fibre Channel interfaces
Other formats Contact us for complete solutions

Accessories & options
Installation Pan & Tilt mount, Wall, Tower, Pole & Tripod options
Diagnostics Bit-error-rate measurement, in-built system diagnostics, remote status monitoring
Software Comprehensive suite of software management tools
